Fire Rated Glazed Doors & Partitions
Radiant’s Glazed Partitions and Glazed Fire Doors are high on aesthetics and safety properties are recommended for application in building entrances, lift lobbies, server rooms, and corridors. Designed to restrict the spread of fire and smoke, they remain clear and transparent during the entire fire thereby allowing fire fighters clear options to rescue endangered lives .These doors not only protect the property and lives, but also add significant value to the visual aesthetic. They are highly flexible, allowing the Architects to create futuristic designs with natural lighting and viewing decks, without compromising on the safety and security. Tested and certified to comply with highest standard building codes across the world, these doors are factory-finished with polyurethane paint
From shopping malls to IT Parks, the construction boom has led to a tremendous increase in human footfall, raising serious concerns for human security in buildings. Radiant Safedoors with leading glass manufacturer Vetrotech Saint Gobain, caters to this need by providing fire safety without compromising on the aesthetics.
Glazed fire doors provide the aesthetical openness of ordinary door systems while protecting against threats like fire, smoke or physical attacks. Fire doors with anti-panic requirements may be equipped with high-security glass to reach RC classifications. Access to natural light and to exterior space has been shown to make people feel more energetic, productive and inspired. We have developed the expertise and products to help you design and execute your next project according to the most stringent fire and security requirements, always keeping the occupants’ safety and the buildings’ performance in mind.
Tested in reputed labs like Warrington Fire Research Laboratory, UK and Central Building Research Institute (CBRI), Roorkee, these door systems provide fire resistance up to 120 minutes as per BS or EN Standards and also offer a clear vision by combining sleek GI frames with Vetrotech Saint Gobain's specially engineered fire-rated glass.

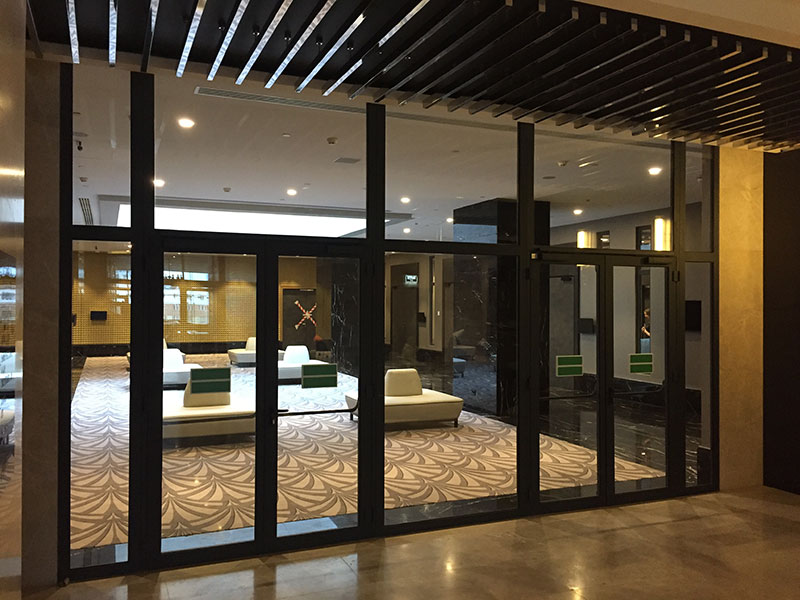

Radiant Saint-Gobain Fully Glazed Fire Rated Doors
Fire Doors (120 minutes & 60 Minutes)
MATERIAL: Door Frames are made from Galvanized Steel.
DOOR FRAMES: Door Frames are produced from 1.20/1.60mm galvanized steel sheet, formed to a profile with a maximum bending radius of 1.4mm.
The door frames can be fixed to the brick or block walls using Anchors.
VISION GLASS: Fire Rated Clear Vision Glass with can be provided for a maximum of 2 hours fire rating. The Vision Glass can be provided with different thickness and fire rating based on the requirement.
FINISH: The doorframes and door shutters are Zinc - Phosphated and finished with UV resistance pure polyester powder coating.
DOOR FITTINGS
HINGES: Stainless Steel Ball Bearing Butt Hinges of 3mm thickness are fixed flush to the frame and door.
LOCK: Mortise Sash Lock (Narrow Stile) with Lever Handles, Mortise Dead Bolt (Narrow Stile) and Panic Devices can be provided as required.
FLUSH BOLTS (DOUBLE DOOR): Concealed extended lever action flush bolts are provided on the top of the door to the leading stile edge.
DOOR CLOSERS: Doors can be fitted with a large variety of Door Closers.
OPTIONS: Exit, Electro Magnetic Hold Open Device, Door Coordinator, Smoke Seals for Air Tightness, etc., can be provided if required.
